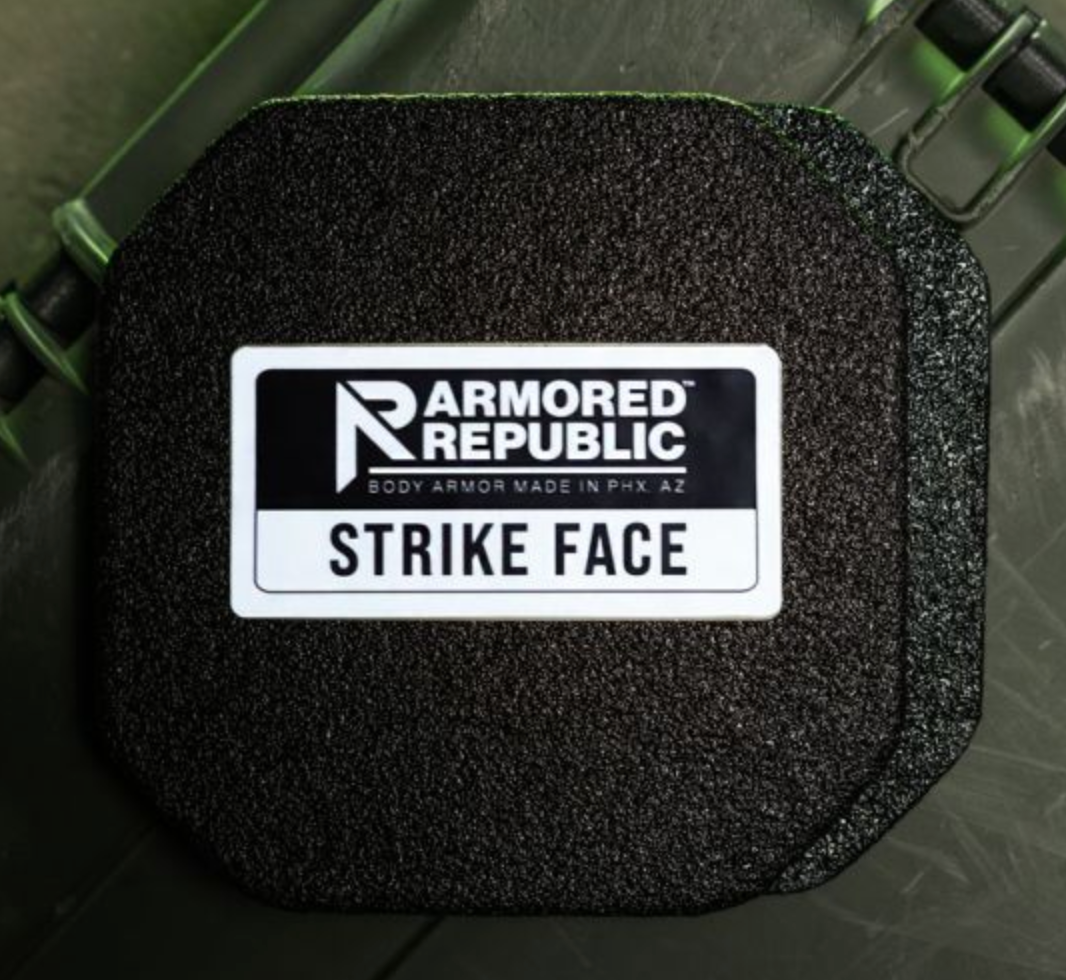

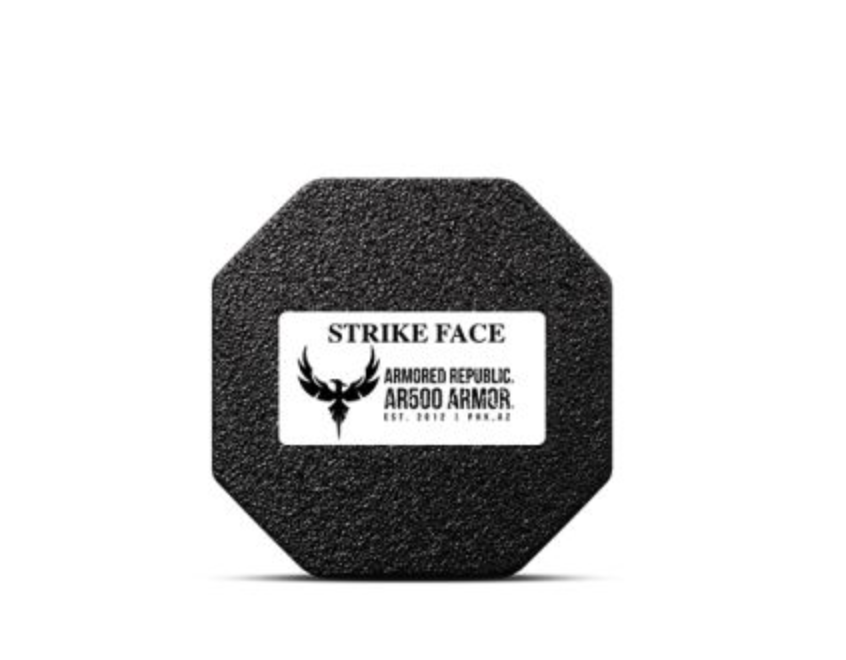

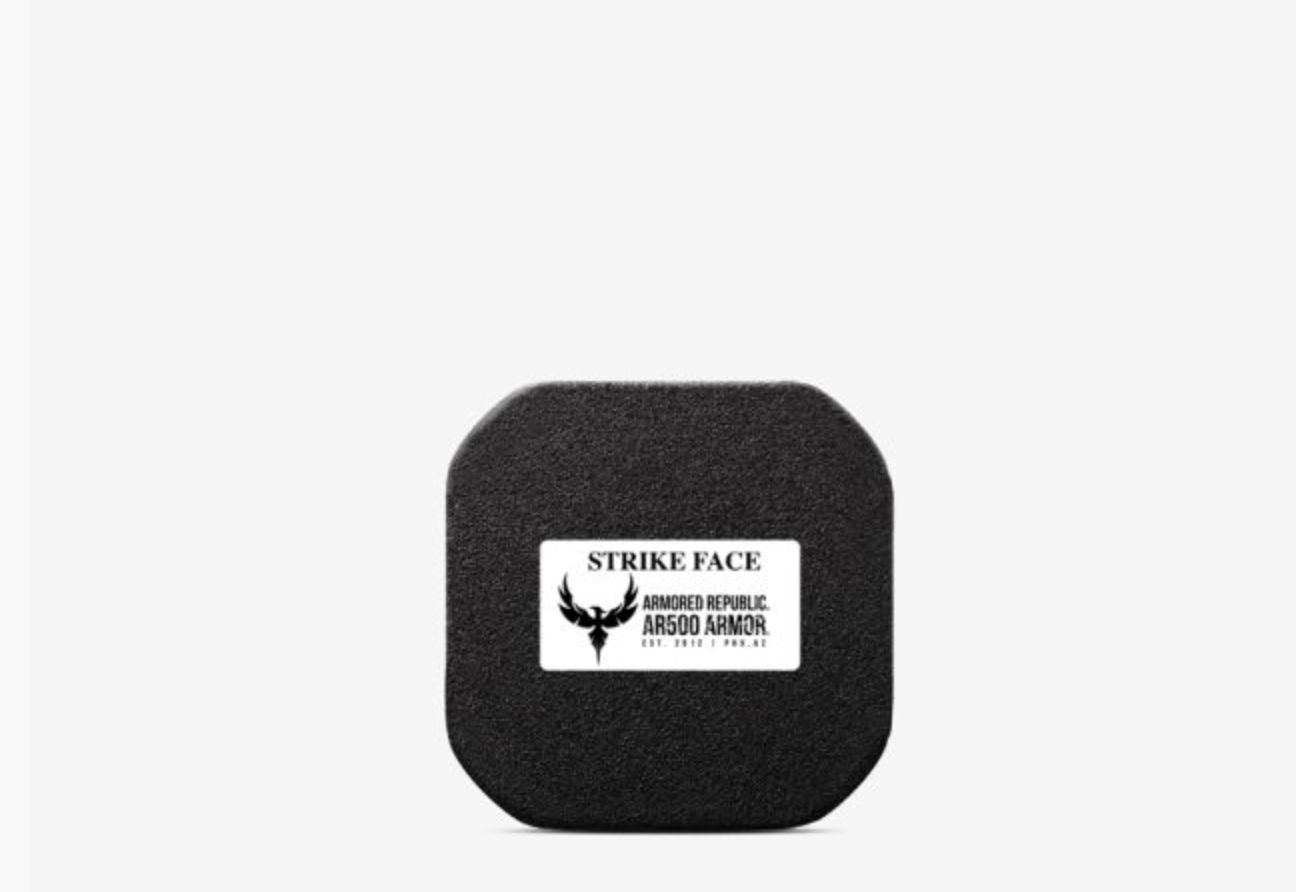

AR500 Hard Side Plates
Couldn't load pickup availability
The curved A1 and A2 Hard Armor Side Plates from Armored Republic are there for you when you’re exposed on multiple sides and need higher coverage: Made for any standard cummerbund side plate pockets, this steel armor provides rifle-rated multi-hit protection while being thinner than ceramic and polyethylene. This makes for a reliable low-profile option for rifle protection on all sides.
Note: these side plates are 6 inches horizontally and 6 inches vertically
Side plates are a useful addition to your setup whenever you’re expecting to be exposed on more than your front or back, such as in entry or defensive standpoints. Non-squared-off shooting positions, such as in hallways or in vehicles, also make side plates a highly valuable asset.
Armored Republic's A1 and A2 Hard Side Plates, which are 6 inches horizontally and 6 inches vertically are compatible with most plate carriers that include cummerbund mounted side plate pouches. It comes standard with a curved profile and a base coat of FragLock® configuration- this base coat protects the plate from the elements, gives it a 20-year shelf-life, and deflects fragmentation away from the wearer. An upgrade is available to give the steel plate a Build-Up FragLock® Coat, which captures the fragmentation completely instead of deflecting it away.
The A1 and A2 side armor plates are rated to stop 5.56mm M193 ammo- the A2 can stop M193s moving at speeds up to 3,000 FPS while the A1 stops bullets moving at 3,100 FPS.
Material: AR500 Steel, with FragLock™ Coating
Protection:
- A1: 7.62x51 M80 Ball (i.e. .308) at 3,000 FPS (+/- 30FPS), 5.56x45 M193, 5.56x45 M855/SS109 at 3,100 FPS (+/- 30FPS), 7.62x39 (i.e. AK-47). DEA Certified. Not rates for AP rounds.
- A2: 7.62x51 M80 NATO Ball (i.e. .308) at 2,850 FPS, 5.56x45 M193, 5.56x45 M855/SS109 at 3,000 FPS (+/- 30FPS) and 7.62x39 (i.e. AK-47). Not rated for AP rounds.
Weight:
-
A1
- Base Coat (3.45 lbs, 0.31")
- Build-Up Coat (3.65 lbs, 0.56")
-
A2
- Base Coat (3 lbs, 0.25")
- Build-Up Coat (3.23 lbs, 0.50")
Capability: Edge-to-edge multi-hit protection
Form: Curved
Shelf life: 20 years
Manufactured: United States
